5T Hydraulic Decoiler 2mm 0-30m/Min Steel Coil Slitting Line

Name: 5T Hydraulic Decoiler 2mm 030mMin Steel Coil Slitting Line
Brand: Dingbo
Price: 33000 USD

China 5T Hydraulic Decoiler 2mm 0-30m/Min Steel Coil Slitting Line wholesale

Brand Name : Dingbo

Model Number : DBSL

Certification : CE ISO SGS

Place of Origin : Jiangsu, China

MOQ : 1 Set

Price : 33000-38000

Payment Terms : T/T, L/C

Supply Ability : 20sets per month

Delivery Time : within 45 days after receiving the deposit

Packaging Details : Export package

Material : HS,CS,MS,PPGI,GI,AL

Material thickness : 0.3-2 mm

Material width : Customized 1250-1500mm

Production speed : 0-30 m/min

Main motor Power : 11 KW

Slitting Speed : 0-30m/min

Hydraulic cutting device : Optional

Name : metal slitting line

Contact Now

Economic Steel Coil Slitting Line with 5T Hydraulic Decoiler for 0.3-2 mm thickness speed 0-30m/min

Steel Coil Slitting Line Slitting Machine Product Descriptions

Metal Slitting line is also a shearing process, slitting line can slit metal, steel, color steel, galvanized steel, Hot rolled, cold rolled, aluminum, stainless steel and other metals. Slitting line is used to cut a wide coil of metal into a number of narrower coils. We have lower speed and high speed and high precision, thin material thickness and thick materail thickness for customization.The steel slitting lines are composed of high-precision slitters with quick tooling change for slitter, tensioning device and recoiler.

Steel Coil Slitting Line Slitting Machine Product Parameters

Items	Main specification
Material	PPGI, GI, Aluminum, Carbon steel, Hot Rolled, Cold Rolled, Stainless steel
Processing Thickness	0.2-2mm
Processing Width	1250mm/1500mm
Slitting Accuracy	±0.05 mm
Slitting Speed	0-40m/min
Coil Inner Diameter	480-520mm
Coil Outer Diameter	≤1400 mm
Max. Slitting Numbers	5-10pcs
Slitting Coil Width	≥20 mm
Not limited to these parameters, custom made according to client practical demands.

Steel Coil Slitting Line Main Components

Name	Quantity
Hydraulic decoiler with car	1 set
Leveler	1 set
Feeding	1 set
Slitting machine	1 set
Scrap winder	1 set
Damper	1 set
Hydraulic recoiler with coil car	1 set

Simple Coil Slitting Line Slitting Machine The flow of the process

Uncoiling—Storage Pit --slitting-- Scrap—Storage Pit—Tension stand— Recoiling

5T Hydraulic Decoiler 2mm 0-30m/Min Steel Coil Slitting Line

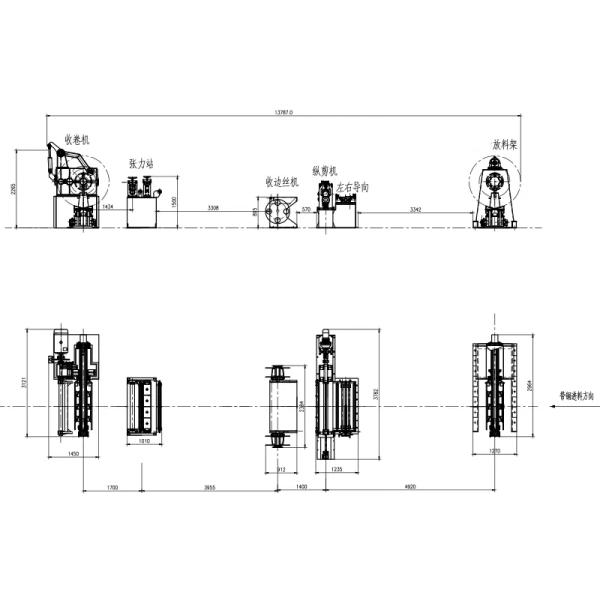

Length X Width: 15m X5m

Steel Coil Slitting Line Material picture

5T Hydraulic Decoiler 2mm 0-30m/Min Steel Coil Slitting Line
